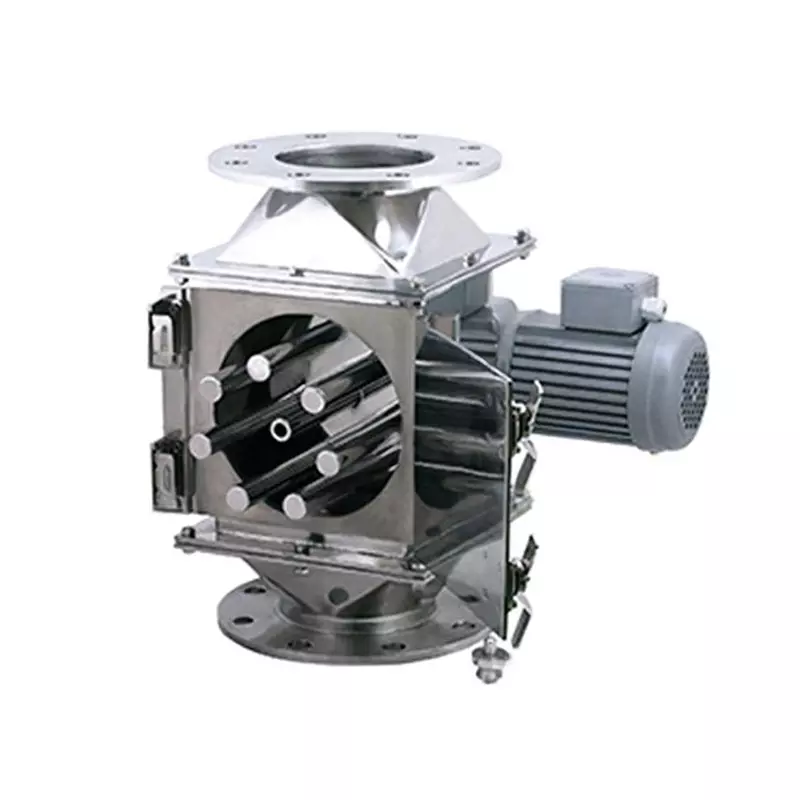

roduct features
The quick-opening design is convenient for cleaning and installation.
2. The maximum magnetic field can reach 12,000 Gs. The working temperature of ordinary products is ≤80℃. Under special requirements, the maximum working temperature can reach 350℃.
The number of magnetic rods can be adjusted according to the characteristics of the material.
4. The inlet and outlet can be designed as flange or square interface, which can be conveniently installed on various pipelines.
5. The rotating magnetic rods can prevent materials from clumping and getting clogged.
Application fields
Rotary magnetic separators are widely used in industries such as building materials, chemical engineering, coal, food, refractory materials, and pharmaceuticals. They are suitable for removing iron from powdery or granular materials and are an excellent choice for eliminating ferromagnetic impurities from materials that are prone to caking, bridging, clogging, and have poor viscosity or fluidity.
Product specifications and technical parameters
| Model |
Size(mm) |
Magnetic rod quantity |
Weight(Kg) |
| ΦA |
B |
C |
H |
KW |
| CRG150 |
150 |
205 |
208 |
450 |
0.25 |
7 |
43 |
| CRG200 |
200 |
255 |
258 |
500 |
0.25 |
9 |
54 |
| CRG250 |
250 |
305 |
308 |
550 |
0.25 |
11 |
62 |
| CRG300 |
300 |
355 |
358 |
600 |
0.37 |
13 |
72 |
| CRG350 |
350 |
405 |
408 |
650 |
0.37 |
15 |
84 |
