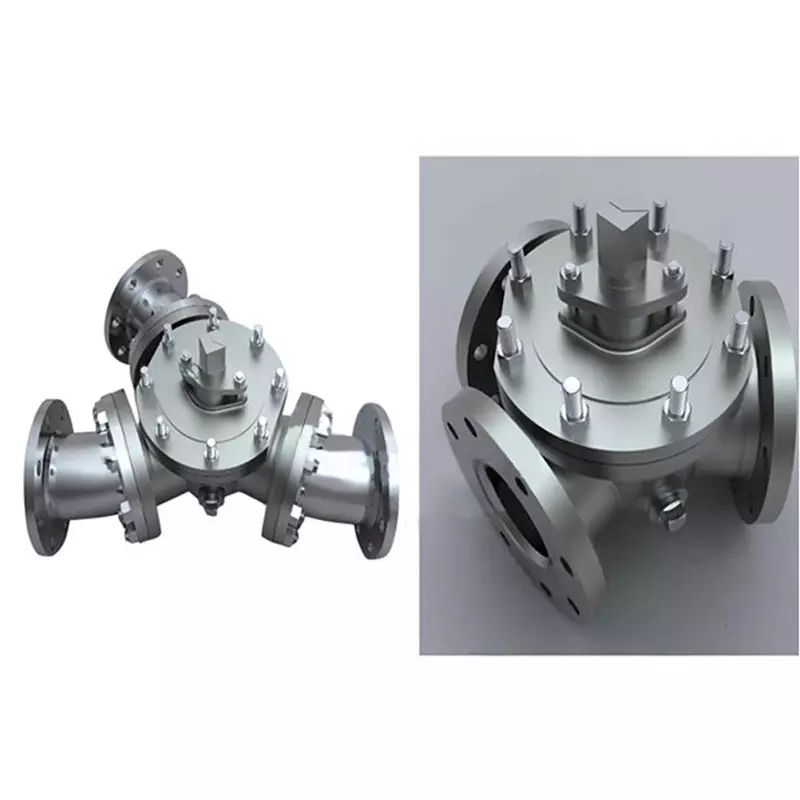

The three-way reversing valve, commonly known as the three-way reversing valve or diverter valve, is a specialized device used in solid material (powder, granular materials, powder and granular mixtures, sheet materials, etc.) conveying systems to switch the flow direction of materials in pipelines. Its completely sealed structure can be applied in outdoor environments.
Product features
According to the material characteristics and conveying working conditions, there are various structural types: ball type, rotating plate type, cylinder type, and swinging plate type.
Users can independently choose the appropriate installation Angle and direction according to the requirements of the conveying pipeline.
In situations where pressure sealing is required, special sealing structures can be configured to fully meet the usage requirements.
Main specifications
| Structural form |
Spherical |
Cylindrical type |
Rotating plate |
Swinging plate type |
| Pipe Angle |
45° |
30° |
22.30° |
45° |
| 60° |
45° |
30° |
60° |
| 90° |
60° |
45° |
90° |
| 120° |
90° |
60° |
120° |
| Main specifications |
DN40 ~ 600 |
DN50 ~ 800 |
DN50 ~ 800 |
DN100~ 1000 |
| Main material |
SS304、SS304L、SS316、316L、 WCB、 QT500 and etc. |
