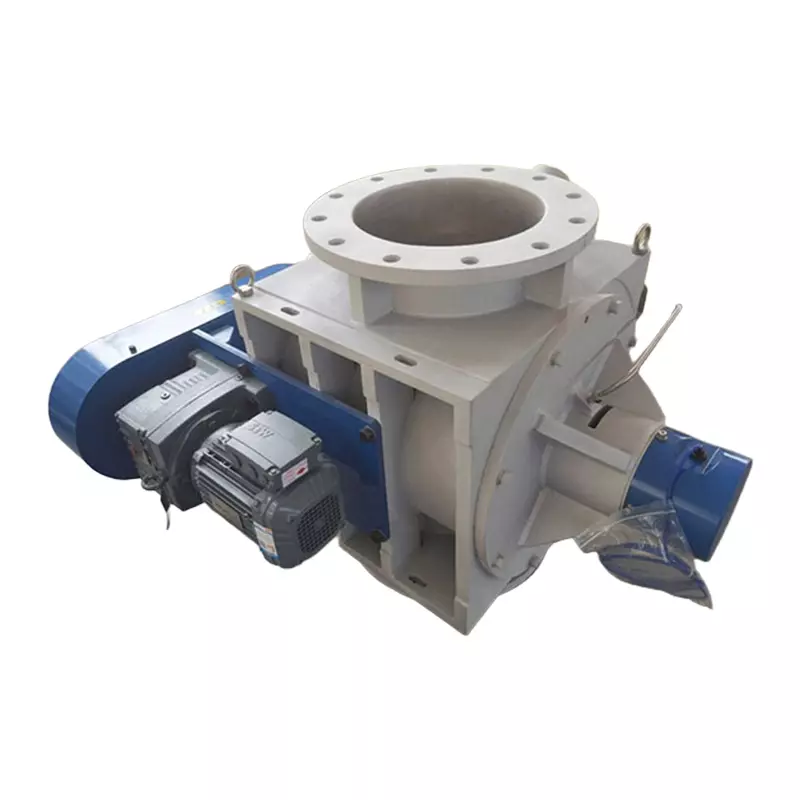

Rotary feeders, commonly known as rotary valves or star feeders, are specialized equipment used in solid material (powder, granular materials, powder and granular mixtures) conveying systems for unloading, packaging, mixing, dust removal, metering, and quantitative conveying. Our company's product range covers special rotary valves for new energy, food and medicine, desulfurization and denitrification, pneumatic conveying, and rotary discharge devices. We are dedicated to the design and manufacture of non-standard working conditions. Welcome to call for negotiation!
Working principle
It is through the transmission of a motor and a reducer that a rotor with an equal division structure rotates inside the casing. The material from the upper hopper or feeding device of the casing is filled into the cavity of the rotor, and the material is discharged from the lower part of the casing along with the rotation of the rotor.
It can be uniformly and continuously discharged downstream in accordance with the requirements of the conveying system.
The special cross-sections at the inlet and outlet of the shell effectively prevent the squeezing, jamming and shearing crushing of granular materials.
The shell is designed with an exhaust channel for balancing pressure and an exhaust pipe interface, which can improve work efficiency and prevent material accumulation.
The casing and impeller have been specially designed in structure, capable of conveying materials with high hardness, high viscosity, high temperature, prone to static electricity generation, ultra-fine and other special features.
It can convey food-grade and pharmaceutical-grade materials.
Main parameters:
|
Work pressure
|
ATM/LP |
MP |
HP |
| ATM/<0.1MPa |
0.15∽0.35 MPa |
>0.35 MPa |
| Working temperature |
-20℃~200℃ /≤450℃/≤650℃ |
| Main specifications |
DN80∽800(3″∽32″ |
| Main types |
Pneumatic conveying type, heavy force unloading type, cleaning type, direct blowing type, eccentric type, wear-resistant type, high-pressure type, high-temperature type |
| Main material |
SS304、 SS304L、 SS316、316L、 SS836L、 WCB、 QT500 and etc. |
| Flange connection standard |
ANSI B 16.5 150LB, GB, HG, SH or designated by client |
| Applicable medium |
Solid materials (powder, granular materials, powder and granular mixtures, flakes, etc.) |
