Product details description of powder equipment accessories
Product Overview
In complex pneumatic conveying systems, a reliable rotary valve is the key to ensuring efficiency and dust-free operation. The TB-SRV48 rotary valve (also known as the rotary feeder) is specially designed for precise metering and conveying of powder and granular materials in positive or negative pressure systems. It can effectively isolate system pressure, prevent material backflow and dust leakage, and is the cornerstone for you to achieve stable and continuous production.
Main features and advantages
Outstanding sealing technology: The adoption of a patented double-lip elastic seal and precisely machined rotor end clearance ensures an extremely low internal leakage rate, significantly enhancing system efficiency and enabling dust-free operation.

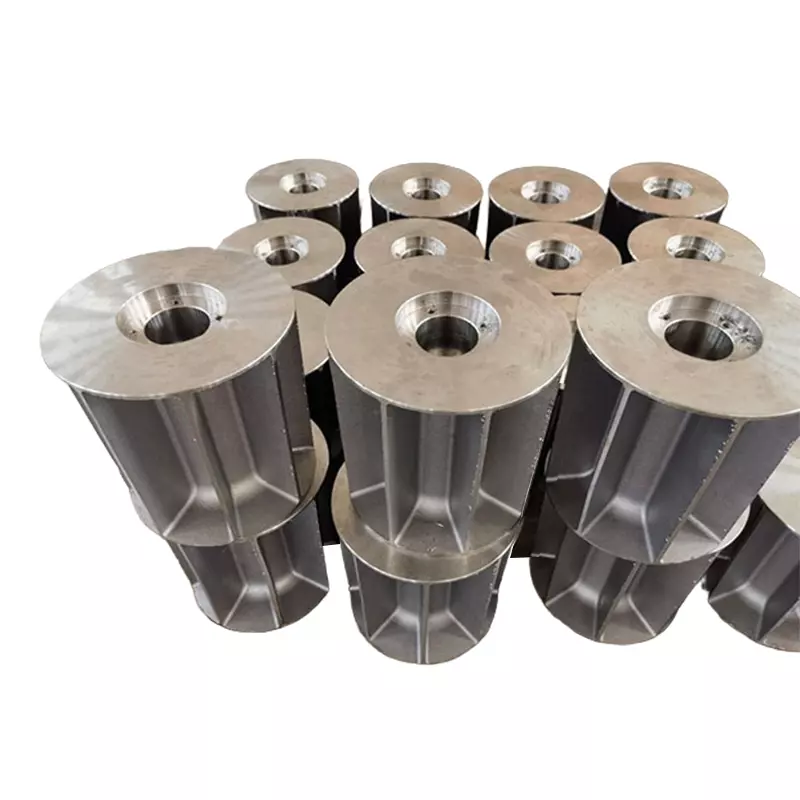

Extraordinary wear resistance: The rotor blades and the inner cavity of the casing can be equipped with high-chromium alloy or tungsten carbide coating, which greatly extends the service life when handling abrasive materials such as silica and alumina.
Modular and easy-to-maintain design: The end cover and bearing housing adopt a modular design, allowing for the inspection and replacement of major components without completely removing the valve from the pipeline, significantly reducing downtime.
Clean and friendly structure: Meets food and pharmaceutical grade requirements, available in all stainless steel material, mirror-polished and no dead corner design to ensure no residue, supporting quick cleaning and product switching.
Intelligent Readiness: Optional speed sensors and predictive maintenance interfaces can be easily integrated into your automation control system, preparing you for an Industry 4.0 smart factory.
Technical specifications
Presented in a clear tabular form for engineers to quickly review.
Project Specifications
Model TB-SRV48
Connection method: Flange type (RF, FF and other standards are optional)
Material main body: 304/316L stainless steel; Rotor: 304 stainless steel (Optional surface hardening treatment)
Volume: 48 liters per revolution
Operating temperature: -20°C to +150°C (Higher temperatures are optional)
Surface treatment: Mechanical polishing/electro-polishing (suitable for food/pharmaceutical grade)
Sealing options: elastomer sealing, metal surface sealing
Drive mode: Chain drive/direct connection type
